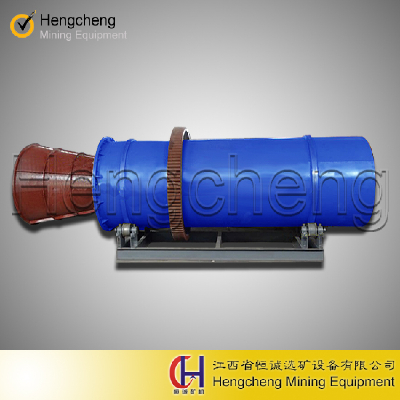

rotary scrubber alluvial mud clay gold washing machine
General Description:
The rotary scrubber is an autogenous rotating drum scrubber, utilizing pebbles and rocks within the
feed source to fracture and disintegrate clays, agglomerates and soft oxides.
The scrubber spins slowly, similar to a giant washing machine. It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from
toughclay, schist’s and rock.
Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is
retained within the drum by reverse flights located at the drum discharge end.
Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels.
Technical Data:
Model | Drum Size (m) | Screen mesh (mm) | Feeding size (mm) | Water pressure (Mpa) | water required (M3/t) | Capacity (T/h) | speed (r/min) | Power (Kw) | Weight (T) |
RXT1030 | Φ1.0×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 6-10 | 25~28 | 15 | 4.8 |
RXT1230 | Φ1.2×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 10-15 | 23~25 | 18.5 | 5.8 |
RXT1545 | Φ1.5×4.5 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 15-25 | 18~22 | 30 | 6.9 |
RXT1560 | Φ1.5×6.0 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 20-50 | 18~22 | 37 | 8.3 |
RXT1845 | Φ1.8×4.5 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 50-80 | 20~21 | 45 | 11.8 |
RXT1860 | Φ1.8×6.0 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 80-100 | 20~21 | 45 | 12.8 |
RXT2060 | Φ2.0×6.0 | ≥5 | ≤210 | 0.4~0.5 | 1.5~4 | 100-120 | 19~20 | 55 | 14.8 |
RXT2265 | Φ2.2×6.5 | ≥5 | ≤230 | 0.4~0.5 | 1.5~4 | 120-140 | 19~20 | 55 | 16.5 |
Machine Features:
high capacity and high scrubbing power
Long drum of the scrubber retains material for longer, more vigorous washing for complete separation
Thickness type steel plate for the drum
Heavy duty bearing ,gear and roller
One high output electrical motor driving a gear system providing efficient torque
The water with high pressure flushed the inwall of drum
Call accept material up to 100mm
Jiangxi Hengcheng Mining Equipment Co.,Ltd is always going for the best quality and perfect service for customers
and it has already won lots of praises at home and abroad.
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
1.Enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet
customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized
solution accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. Most favorable scheme for you with the guaranteed quality.
4. Timely communication to make sure improvement of project and your requirement met.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation & adjustment is finished.
4. If any failure or question about the machines or the processing line, contact us and we are
availableat any time.
- Place of Origin: China
- Brand Name: hengzhong
- Model Number: RXT
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
Technical Data: soil washing machine.
Model | Drum Size (m) | Screen mesh (mm) | Feeding size (mm) | Water pressure (Mpa) | water required (M3/t) | Capacity (T/h) | speed (r/min) | Power (Kw) | Weight (T) |
RXT1030 | Φ1.0×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 6-10 | 25~28 | 15 | 4.8 |
RXT1230 | Φ1.2×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 10-15 | 23~25 | 18.5 | 5.8 |
RXT1545 | Φ1.5×4.5 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 15-25 | 18~22 | 30 | 6.9 |
RXT1560 | Φ1.5×6.0 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 20-50 | 18~22 | 37 | 8.3 |
RXT1845 | Φ1.8×4.5 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 50-80 | 20~21 | 45 | 11.8 |
RXT1860 | Φ1.8×6.0 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 80-100 | 20~21 | 45 | 12.8 |
RXT2060 | Φ2.0×6.0 | ≥5 | ≤210 | 0.4~0.5 | 1.5~4 | 100-120 | 19~20 | 55 | 14.8 |
RXT2265 | Φ2.2×6.5 | ≥5 | ≤230 | 0.4~0.5 | 1.5~4 | 120-140 | 19~20 | 55 | 16.5 |
