- Place of Origin: Jiangxi,China
- Brand Name: hengzhong
- Model Number: JT
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
gravity separator alluvial gold mining washing machine jigger jig machine
Description:

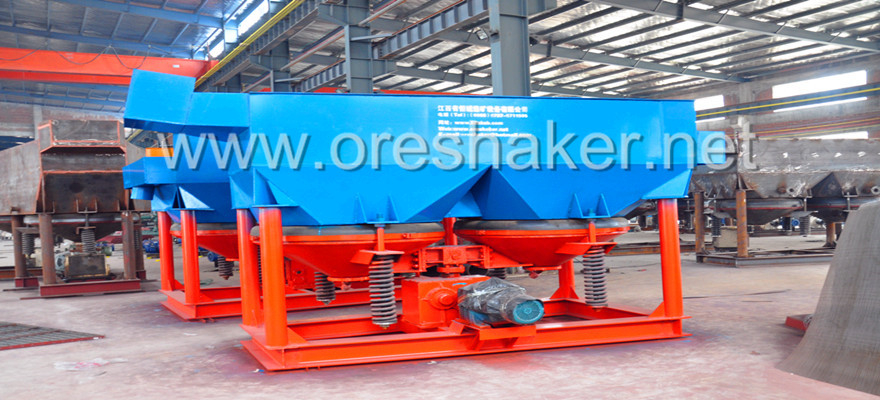

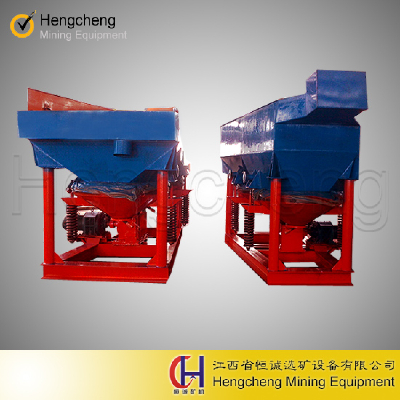

Manganese Ore Jig Separator machine belongs to gravity-based equipments, which can separate mineral based on differing of specific gravity. Saw-tooth wave jig mainly consists of three parts: main frame, driving set and jigging chamber.
Machine Features:
The pulsing curve of the traditional jig is sinusoidal waveform, the up and down speed of water flow and acting time produced by the movement of membrane are almost same, so it is unfavorable to loose of jig bed and layering of minerals based on special gravity, and thus affect separation ability and recovery rate. Saw-tooth wave is energy economy gravity equipment that is developed and improved from traditional jig on the basis theory of jig bed layering. Its jigging pulsating curve is similar to saw-tooth wave, which makes the up speed of water flow quicker than down speed of water flow, so it can improve looseness of jig bed and reduce suction action, which can lead to fully settlement of heavy particles in slurry; it highly improves separation ability and recovery rate. Stroke and frequency of stroke are adjustable.
Technical Specification
Model | Chamber | Feeding Size(mm) | Water added | Pressure of water | Processing capacity | Motor Power | Dimension | Weight | |
shape | Aream2 | ||||||||
JT0.57-1 | Ladder | 0.57 | <6 | 1-3 | >0.5 | 1-2.5 | 1.5 | 1550*780*1530 | 610 |
JT1-1 | Ladder | 1.04 | <10 | 1-3 | 2-4 | 2.2 | 2270*1110*1890 | 900 | |
JT2-2 | Rect | 2.28 | <10 | 1-3 | 4-8 | 3 | 3225*1550*2050 | 1640 | |
JT3-1 | Ladder | 3.3 | <10 | 1-3 | >0.5 | 6-10 | 5.5 | 3180*2000*2600 | 3260 |
JT5-2 | Ladder | 4.86 | <10 | 1-3 | 10-15 | 7.5 | 3600*2000*2600 | 4500 | |
JT1.5-2 | Rect | 1.53 | <30 | 1-2 | >0.5 | 5-8 | 3200*1550*2050 | 1520 | |
JT4-2 | Rect | 4.33 | <30 | 1-2 | 10-15 | 7.5 | 3600*1850*2600 | 4600 | |
Application
Manganese ore jig separator machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.
FAQ:
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5. Q: Do you provide producution flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
6. Q: Can you test our sample ore?
A: Yes. You can send your samples to us for testing and analysis.
7. Q: Have you made the whole ore dressing lines?
A: Yes. We have made many large&small scale ore dressing lines at home and abroad.
