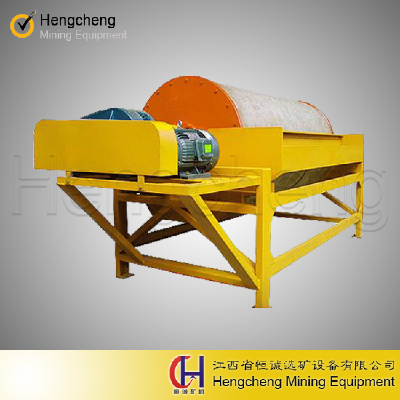

energy and mineral equipment wet type drum magnetic separator machine
General Description:
Magnetic separation is based on the difference in magnetic properties between the ore minerals and used to separate either valuable mineral from non-magnetic gangue.
The removal of small amounts of iron and iron-bearing minerals from industrial minerals has the concentration of various ferrous and nonferrous minerals.
Technical Data:
Model | Cylinder Diameter (mm) | Cylinder Length (mm) | Rotation Speed (r/min) | Feeding Size (mm) | Processing Capacity (t/h) | Power (KW) |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-180 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
Machine Features:
1.With deep magnetic field,the machine can make a continuous row ore feeding and discharging.
2.It also has enough working clearance and high processing capabilities.
3.Our products are using computer optimized design,reasonable magnetic field,and strict selection of high magnetic & permanent magnets, to ensure that magnetic will not reduce in long term,and assure the customer's long term benefits.
4.This machine structure is reliable and durable.
Working princeple:
When the ore pulp flow into the magnetic filed,the strong magnetic minerals are adsorbed on the surface of the drum.
The weak magnetic and non-magnetic minerals are cast off and discharged,while the strong magnetic minerals on the surface of the drum rotate with the drum and will be brought out of the magnetic field to complete the sorting operation.
Application:
Magnetic separator is usually used for sorting the fine-grained strong magnetic minerals,or removing strong magnetic minerals from non-magnetic minerals.
Our service:
Pre-sale service:
We will provide you with the prior plan, process flowchart design and production equipment in line with your special needs.
Sale-service:
We will send technicians to you for guiding the equipment installation, commissioning and staff training.
After-sale service:
We will regularly pay return visit to customers for establishing a long-term and friendly relationship.
All machines have one year warranty to make sure your machine work well.
Jiangxi Hengcheng Mining Equipment Company is specialized in manufacturing various kinds of mining equipment. We have served the mineral processing industry as an excellent mineral processing equipment manufacturer for over 20 years.
Hengcheng company is dedicated to provide a complete line of equipment including shaking table, spiral chute, jig machine ,trommel,rotary scrubber, flotation machine, magnetic separator ,grinding mill, and so on. We are involved in the range of mineral beneficiation services including mineral testing, process flowchart design, installation and commissioning, technical consulting, as well as staff training, etc. Our proven technologies and experience permit us to provide every customer with the most efficient & commercial beneficiation plant equipment.
