alluvial gold processing plant gravity separator machine ore concentrator spiral chute
GENERAL DESCRIPTION :

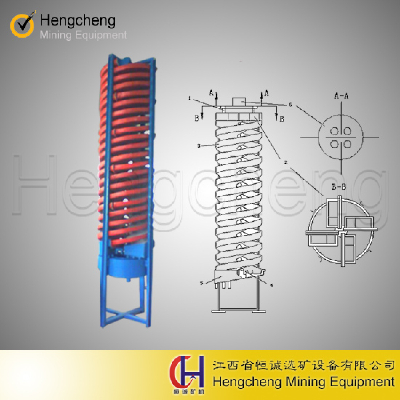

Spiral chutes are gravity concentrators and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. It has extremely good performance and effects in processing placer of beach, riverside, seashore and stream.
Spiral chutes are made of polyurethane lined fiberglass with wear-resistant corundum inner surface.
MACHINE FEATURES :
Reasonable structure and small occupation area
High recovery, high efficiency, and precise separation,
Light in weight, rust and corrosion resistant;
Simple installation and Minimal maintenance requirements
Low operating cost and long operating life
Reliable running with minimal operator attention
Strong adaptability to fluctuation of feeding amount, density, size and grade;
TECHNICAL DATA:
Model | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
Outside dia(mm) | 1500 | 1200 | 900 | 600 | 400 | |
pitch(mm) | 540,720 | 900,720,540 | 675,540,405 | 450,360,270 | 240,180 | |
Pitch Dia Ratio | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.6,0.45 | |
Lateral slope | 9° | 9° | 9° | 9° | 9° | |
Maximum starts per column | 4-2 | 4-2 | 4-2 | 3 | 2 | |
Feeding Size(mm) | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
Feeding Density(%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 | |
Capacity(T/H) | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
External Size | Length(mm) | 1560 | 1360 | 1060 | 700 | 460 |
Width(mm) | 1560 | 1360 | 1060 | 700 | 460 | |
Height(mm) | 5230 | 5230 | 4000 | 2600 | 1500 | |
Weight (Kg) | 800 | 600 | 400 | 150 | 50 |
APPLICATION IN MINE SITES:
Rutile, ilmenite and zircon concentration
Iron ore, chromite and manganese beneficiation
Tin, tantalum and ore concentration
Gold, native copper and base metal recovery
Silica sands processing
Titano-magnetite concentration
Our Service:
Hengcheng machinery is always going for the best quality and perfect service for customers
and it has already won lots of praises at home and abroad.
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded
with great profit.
1. enough details about the ores or slags shall be learned, sometimes a test is needed for some ores.
2. Equipment of right model is selected for customers.
3. Customized products and processing flow sheet can be designed and developed to meet
customer's special needs,
4. Engineer could be sent to observe customer's working site to come up with an optimized solution
accordingly.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to
helping you to benefit as much as possible.
1. Inspection is a must before delivering of the goods.
2. Assistance to make a construction plan by supplying all drawings and data needed.
3. most favorable scheme for you with the guaranteed quality.
4. timely communication to make sure improvement of project and your requirement met.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
3. Service engineers will not leave until ensuring the whole line running well after the installation &
adjustment is finished.
4. if any failure or question about the machines or the processing line, contact us and we are available at any time.
